ТСПУ 9313, ТСМУ 9313... Термопреобразователи с унифицированным токовым выходным сигналом / Приборы для измерения температуры / Каталог продукции

Термопреобразователи с унифицированным токовым выходным сигналом ТСПУ 9313, ТСМУ 9313, ТХАУ 9310

Термопреобразователи с унифицированным токовым выходным сигналом ТСПУ 9313, ТСМУ 9313, ТХАУ 9310Назначение: для измерения температуры жидких, газообразных сыпучих и веществ.

Отличительная особенность - содержит в головке нормирующий усилитель с выходным сигналом 4-20 мА, 0-5мА, 0-5 В.

показатель тепловой инерции, с, не более - 20(рис.2,4,6,8), не более - 40(рис.1,3,5,7) выходной сигнал - 4-20 мА, 0-5мА, 0-5 В напряжение питания - 12-36 В потребляемая мощность - 0,9 Вт зависимость выходного сигнала от измеряемой температуры - линейная схема включения - двухпроводная сопротивление нагрузки с учетом линии связи - 1,0 кОм крепление - рис. 3,4,7,8-штуцер М20х1,5; рис. 1,2,5,6-передвижной штуцер, средняя наработка до отказа при номинальных температурах ТСПУ-25000 ч, ТСМУ-32000 ч

Термопреобразователи сопротивления ТСМУ 9313 могут быть выполнены с антикоррозийным покрытием -фторопласт для измерения температуры в кислых и щелочных средах при температуре до +200°С.

Источник питания в комплект поставки не входит, розетка 2РМ22КПН10Г1В1В с перемычками-входит в комплект термопреобразователя.

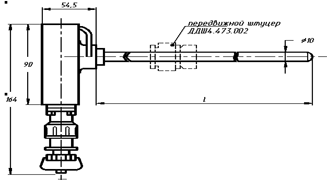

Рис.1*Передвижной штуцер поставляется при наличии для него отдельного заказа

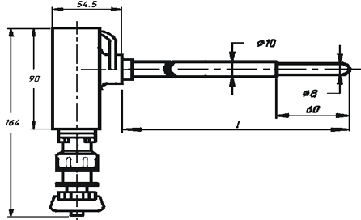

Рис.2

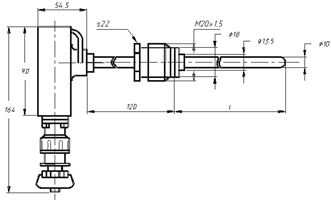

Рис.3Штуцер подвижный

Рис.4Штуцер подвижный

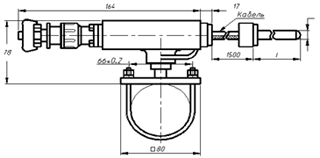

Рис.5


Рис.6Остальное см рис.5

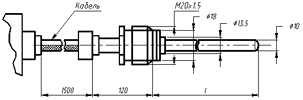

Рис.7Остальное см рис.5

Рис.8Остальное см рис.5


Схемы включения термопреобразователей (Rн=(Uпит-12)/0,02 Ом)

а) при токовом выходном сигнале 4-20 mA
б) при токовом выходном сигнале 0-5 mA
в) при выходном сигнале в виде напряжения 0-5, 0-10 В



Конструктивное исполнение ТСПУ Диапазон измеряемых температур,°С Предел допускаемой погрешности, % Рис.

  -14 -15 -16 -17 -18 -19 -50…+50 0,5 1
.03 .03 .03 .03 .03 .03
.04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 0 ... +400 1,0
-24 -25 -26 -27 -28 -29 -50…+50 0,5 2
.03 .03 .03 .03 .03 .03
.04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 0 ... +400 1,0
-30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -50…+50 0,5 3
.03 .03 .03 .03 .03 .03 .03 .03 .03 .03
.04 .04 .04 .04 .04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 .20 .20 .20 .20 0 ... +400 1,0
-40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50…+50 0,5 4
.03 .03 .03 .03 .03 .03 .03 .03 .03 .03
.04 .04 .04 .04 .04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 .20 .20 .20 .20 0 ... +400 1,0
  -54 -55 -56 -57 -58 -59 -200…+50 1,0 5
.01 .01 .01 .01 .01 .01
.02 .02 .02 .02 .02 .02 -100…+50 1,0
.03 .03 .03 .03 .03 .03 -50…+50 0,5
.04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 0 ... +400 1,0
-64 -65 -66 -67 -68 -69 -200…+50 1,0 6
.01 .01 .01 .01 .01 .01
.02 .02 .02 .02 .02 .02 -100…+50 1,0
.03 .03 .03 .03 .03 .03 -50…+50 0,5
.04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 0 ... +400 1,0
-70 -71 -72 -73 -74 -75 -76 -77 -78 -79 -200...+50 1,0 7
.01 .01 .01 .01 .01 .01 .01 .01 .01 .01
.02 .02 .02 .02 .02 .02 .02 .02 .02 .02 -100...+50 1,0
.03 .03 .03 .03 .03 .03 .03 .03 .03 .03 -50…+50 0,5
.04 .04 .04 .04 .04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 .20 .20 .20 .20 0 ... +400 1,0
-80 -81 -82 -83 -84 -85 -86 -87 -88 -89 -200...+50 1,0 8
.0,1 .0,1 .0,1 .0,1 .0,1 .0,1 .0,1 .0,1 .0,1 .0,1
.0,2 .0,2 .0,2. 0,2 .0,2 .0,2 .0,2 .0,2 .0,2 .0,2 -100...+50 1,0
.03 .03 .03 .03 .03 .03 .03 .03 .03 .03 -50…+50 0,5
.04 .04 .04 .04 .04 .04 .04 .04 .04 .04 -25…+25 1,0
.05 .05 .05 .05 .05 .05 .05 .05 .05 .05 0…+50 1,0
.06 .06 .06 .06 .06 .06 .06 .06 .06 .06 0…+100 0,5
.07 .07 .07 .07 .07 .07 .07 .07 .07 .07 0…+200 0,5
.08 .08 .08 .08 .08 .08 .08 .08 .08 .08 +150…+200 1,0
.09 .09 .09 .09 .09 .09 .09 .09 .09 .09 +200…+300 1,0
.10 .10 .10 .10 .10 .10 .10 .10 .10 .10 +200…+400 0,5
.11 .11 .11 .11 .11 .11 .11 .11 .11 .11 +400…+600 1,0
.19 .19 .19 .19 .19 .19 .19 .19 .19 .19 0 ... +150 0,5
.20 .20 .20 .20 .20 .20 .20 .20 .20 .20 0 ... +400 1,0
100 120 160 200 250 320 400 630 800 1000 l, мм
0,61 0,62 0,64 0,65 0,66 0,68 0,72 0,77 0,84 0,93 Масса, кг



Конструктивное исполнение Диапазон измеряемых температур,°С Предел допускаемой погрешности, % Рис.
ДДШ 2.821.971-
  -14 -15 -16 -17 -18 -19     1
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-24 -25 -26 -27 -28 -29 -50…+50 0,5 2
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -50…+50 0,5 3
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
-40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50…+50 0,5 4
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
  -54 -55 -56 -57 -58 -59 -50…+50 0,5 5
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-64 -65 -66 -67 -68 -69 -50…+50 0,5 6
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-70 -71 -72 -73 -74 -75 -76 -77 -78 -79 -50…+50 0,5 7
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
-80 -81 -82 -83 -84 -85 -86 -87 -88 -89 -50…+50 0,5 8
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
100 120 160 200 250 320 400 630 800 1000 l, мм
0,61 0,62 0,64 0,65 0,66 0,68 0,72 0,77 0,84 0,93 Масса, кг

Конструктивное исполнение ТСМУ Диапазон измеряемых температур,°С Предел допускаемой погрешности, % Рис.
ДДШ 2.821.971-
  -14 -15 -16 -17 -18 -19     1
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-24 -25 -26 -27 -28 -29 -50…+50 0,5 2
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -50…+50 0,5 3
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
-40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50…+50 0,5 4
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
  -54 -55 -56 -57 -58 -59 -50…+50 0,5 5
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-64 -65 -66 -67 -68 -69 -50…+50 0,5 6
.12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 +100…+150 1,0
-70 -71 -72 -73 -74 -75 -76 -77 -78 -79 -50…+50 0,5 7
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
-80 -81 -82 -83 -84 -85 -86 -87 -88 -89 -50…+50 0,5 8
.12 .12 .12 .12 .12 .12 .12 .12 .12 .12
.13 .13 .13 .13 .13 .13 .13 .13 .13 .13 -25…+25 1,0
.14 .14 .14 .14 .14 .14 .14 .14 .14 .14 0…+50 1,0
.15 .15 .15 .15 .15 .15 .15 .15 .15 .15 0…+100 0,5
.16 .16 .16 .16 .16 .16 .16 .16 .16 .16 0…+150 0,6
.17 .17 .17 .17 .17 .17 .17 .17 .17 .17 +50…+100 1,0
.18 .18 .18 .18 .18 .18 .18 .18 .18 .18 +100…+150 1,0
100 120 160 200 250 320 400 630 800 1000 l, мм
0,61 0,62 0,64 0,65 0,66 0,68 0,72 0,77 0,84 0,93 Масса, кг

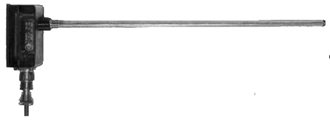

Заказать ТСПУ 9313, ТСМУ 9313... Термопреобразователи с унифицированным токовым выходным сигналом

  Тел.(4812)386407, 386663, 387597. Факс(4812)385745
E-mail: mail@teploizmerenie.ru
